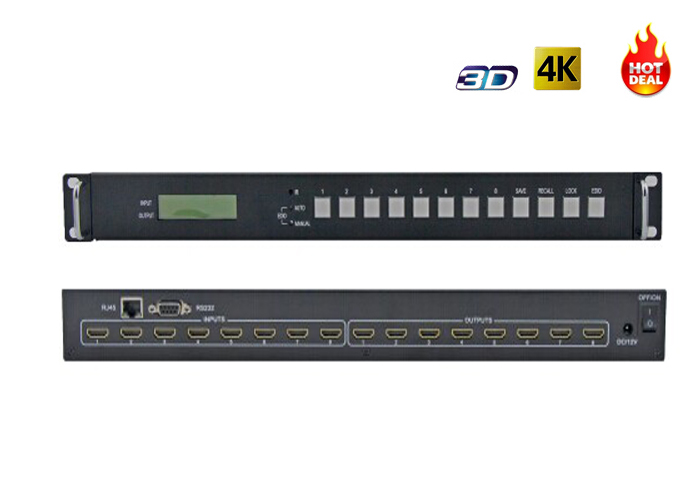

4Kx2K 8X8 3D IR HDMI Video Matrix Switcher With 8x Inputs And 8x Outputs

Brand Name : VINCAN

Model Number : WL-iM88

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 pcs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package for HDMI1.4 4KX2K 8X8 3D IR HDMI Video matrix switcher with 8x HDMI inputs and 8x HDMI outputs

Interface : HDMI-A

HDMI version : HDMI1.4

Bandwidth : 300MHz

Resolution : Up to 4Kx2K@30Hz

Clock Jitter : <0.15 Tbit (1080p@60)

Max Consumption : 20 w

Contact Now

HDMI1.4 4KX2K 8X8 3D IR HDMI Video matrix switcher with 8x HDMI inputs and 8x HDMI outputs

Description:

Distributes any all or some of the 8 input sources to the Sink Follower. 1,2,3 …, or 8 source scan be displayed

simultaneously Compatible with full HD 480p, 576p, 720p, 1080i and 1080p/ 1080P@24Hz 3D, 4Kx2Ksource

LCM Panel to display the Input/Output routing information Support Button,Remoter,RS232,Ethernet Support

HDMI 1.4 4Kx2K Support EDID learning and parse.

Features:

1. Support HDMI 1.4 4Kx2K;

2. Support 3D video;

3. Support LCM display,Support RS232, ethernet, buttons,remoter control;

4. HDMI output with strong compatibility and reliability performance;

5.DMI1.4 4KX2K 8X8 3D IR HDMI Video matrix switcher with 8x HDMI inputs and 8x HDMI outputs;

Specification:

Input Interface----------------------------------- HDMI-A
Output Interface -------------------------------- HDMI-A
HDMI Version------------------------------------- 1.4
Power Adapter----------------------------------- 12V/3A
Power Consumption --------------------------- 10W
Operation Temperature ----------------------- 0～70℃
Operation Humidity ---------------------------- 5～90%RH

Product name--------------DMI1.4 4KX2K 8X8 3D IR HDMI Video matrix switcher with 8x HDMI inputs and 8x HDMI outputs

4Kx2K 8X8 3D IR HDMI Video Matrix Switcher With 8x Inputs And 8x Outputs
